Android 开机动画流程分析

Android bootanim流程分析

bootanim启动步骤

init.rc 文件声明两个重要的服务 bootanim, surfaceflinger
启动界面依赖于 surface 管理服务，优先启动显示管理服务 surfaceflinger
surfaceflinger 服务完成后，通过 (“ctl.start”, “bootanim”) 启动 bootanim 开机动画
当 system_server 启动系统 HomeUI 的时候关闭 bootanim

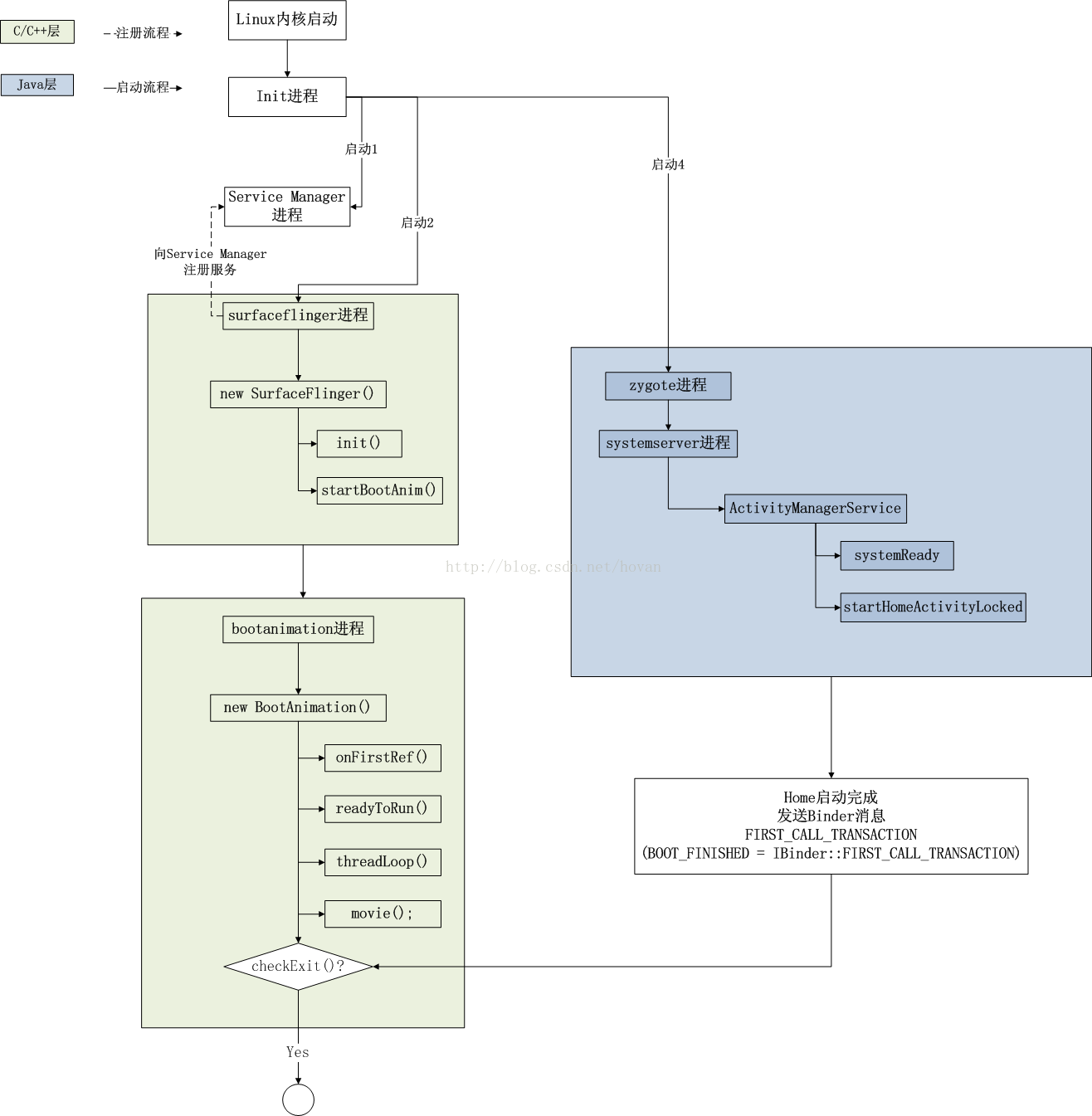

其具体流程可以参考下图所示

init.rc 文件相关声明

surfaceflinger类属core，随core类服务一同启动，服务重启直接导致Zygote服务的重启

service surfaceflinger /system/bin/surfaceflinger
    class core
    user system
    group graphics drmrpc system
    onrestart restart zygote

bootanim类属core，但是disable标志它不随core服务一同启动，用户及用户组均是graphics，而且仅启动一次oneshot

service bootanim /system/bin/bootanimation
    class core
    user graphics
    group graphics audio
    disabled
    oneshot

surfaceflinger服务的启动流程

surfaceflinger 的 main 方法

–> frameworks/native/services/surfaceflinger/main_surfaceflinger.cpp

int main(int, char**) {
    // 设置线程数量最大4
    ProcessState::self()->setThreadPoolMaxThreadCount(4);

    // 开启线程池
    sp<ProcessState> ps(ProcessState::self());
    ps->startThreadPool();

    // 实例surfaceflinger
    sp<SurfaceFlinger> flinger = new SurfaceFlinger();

    setpriority(PRIO_PROCESS, 0, PRIORITY_URGENT_DISPLAY);

    set_sched_policy(0, SP_FOREGROUND);

    // 在客户端连接前初始化
    flinger->init();

    // 发布surfaceflinger就绪
    sp<IServiceManager> sm(defaultServiceManager());
    sm->addService(String16(SurfaceFlinger::getServiceName()), flinger, false);

    // 启动
    flinger->run();

    return 0;
}

surfaceflinger 在 init 中启动 bootanim 服务

–> frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp

surfaceflinger 的初始化工作代码众多，这里就不一一列举了，在其init过程中，启动了bootanim服务

void SurfaceFlinger::init() {

    // 初始化 EGL 用于显示
    mEGLDisplay = eglGetDisplay(EGL_DEFAULT_DISPLAY);
    eglInitialize(mEGLDisplay, NULL, NULL);

    mHwc = new HWComposer(this,
            *static_cast<HWComposer::EventHandler *>(this));

    ...

    mDrawingState = mCurrentState;

    initializeDisplays();

    // 启动 boot animation
    startBootAnim();

   ...

}

init 中通过 property_set(“ctl.start”, “bootanim”) 启动了 bootanim 服务

void SurfaceFlinger::startBootAnim() {
    // 开启 bootanim 服务
    struct timespec t = {0, 0};
    clock_gettime(CLOCK_MONOTONIC, &t);

    // 置位操作
    property_set("service.bootanim.exit", "0");
    property_set("ctl.start", "bootanim");
}

bootanim 服务的启动流程

总体概述

–> frameworks/base/cmds/bootanimation/BootAnimation.cpp

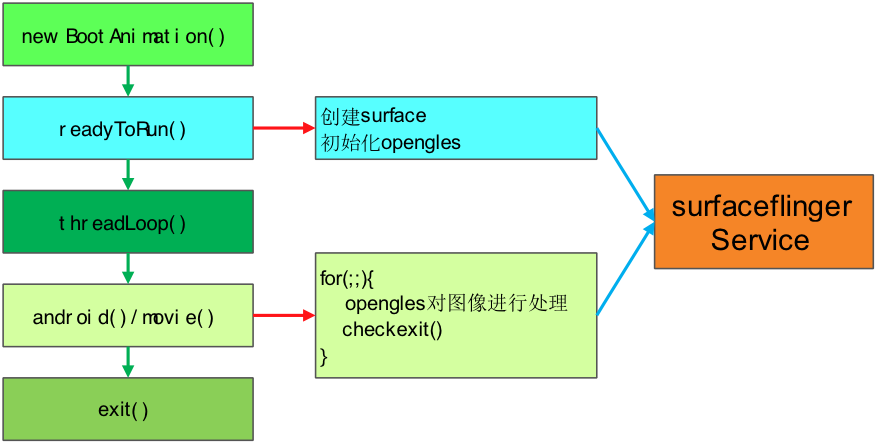

bootanim 流程如下图所示:

bootanim内部有大量的逻辑用于初始化和surfaceflinger通信，其内部依赖于安卓独有的binder通信机制，这里不做过多的说明。关于binder通信机制，需要大量篇幅的介绍说明，个人目前还没有这个能力。下面我们来看点可以看得懂的干货

readyToRun 流程

status_t BootAnimation::readyToRun() {

   ...

    // 创建 native层surface
    sp<SurfaceControl> control = session()->createSurface(String8("BootAnimation"),
            dinfo.w, dinfo.h, PIXEL_FORMAT_RGBA_8888, 0);

        SurfaceComposerClient::openGlobalTransaction();
        SurfaceComposerClient::closeGlobalTransaction();

        sp<Surface> s = control->getSurface();

        // 初始化 opengl 和 egl
        EGLint w, h;
        EGLint numConfigs;
        EGLConfig config;
        EGLSurface surface;
        EGLContext context;

        EGLDisplay display = eglGetDisplay(EGL_DEFAULT_DISPLAY);
        eglInitialize(display, 0, 0);
        eglChooseConfig(display, attribs, &config, 1, &numConfigs);

        ...

        // 设备支持编码选项或者正处于编码进程中，显示编码动画
        char decrypt[PROPERTY_VALUE_MAX];
        property_get("vold.decrypt", decrypt, "");

        bool encryptedAnimation = atoi(decrypt) != 0 || !strcmp("trigger_restart_min_framework", decrypt);

        ZipFileRO* zipFile = NULL;
        if ((encryptedAnimation &&
                (access(SYSTEM_ENCRYPTED_BOOTANIMATION_FILE, R_OK) == 0) &&
                ((zipFile = ZipFileRO::open(SYSTEM_ENCRYPTED_BOOTANIMATION_FILE)) != NULL)) ||

                ((access(OEM_BOOTANIMATION_FILE, R_OK) == 0) &&
                ((zipFile = ZipFileRO::open(OEM_BOOTANIMATION_FILE)) != NULL)) ||

                ((access(SYSTEM_BOOTANIMATION_FILE, R_OK) == 0) &&
                ((zipFile = ZipFileRO::open(SYSTEM_BOOTANIMATION_FILE)) != NULL))) {
            mZip = zipFile;
        }

        // 查看是否存在需要播放的video文件
        if ((property_get("mstar.bootvideo", decrypt, NULL) > 0) ||
            (access(USER_BOOTVIDEO_FILE, F_OK) == 0)) {
            mVideo = true;
            mZip = NULL;
        } else {
            mVideo = false;
            if(property_get("mstar.close.bootlogo.gop.frame", decrypt, NULL) <= 0 ) {
                property_set("mstar.close.bootlogo.gop.frame", "3");
            }
        }
           return NO_ERROR;
    }

这里需要注意mZip文件的获取，其三个文件的文件夹路径如下：

    #define OEM_BOOTANIMATION_FILE "/oem/media/bootanimation.zip"
    #define SYSTEM_BOOTANIMATION_FILE "/system/media/bootanimation.zip"
    #define SYSTEM_ENCRYPTED_BOOTANIMATION_FILE "/system/media/bootanimation-encrypted.zip"
    #define USER_BOOTVIDEO_FILE "/data/video/video.ts"

通过代码可以看出，文件的获取优先级是bootanimation-encrypted.zip最高，/oem/media/文件夹下的bootanimation.zip次之，最低级的是/system/media/文件夹下的bootanimation.zip。最后在检查指定目录是否存在用于启动播放的video视频。

threadLoop 流程

bool BootAnimation::threadLoop()
{
    bool r;
    // 等待硬件初始化完成，开启 bootanim 动画
    char property[PROPERTY_VALUE_MAX] = {0};
    property_get("mstar.hw.init", property, "0");
    int hwInit = atoi(property);
    memset(property, 0, PROPERTY_VALUE_MAX);
    property_get("mstar.str.suspending", property, "0");
    int strSuspending = atoi(property);
    if (hwInit == 0) {
        int exitnow;

        property_get(EXIT_PROP_NAME, property, "0");
        exitnow = atoi(property);
        if (exitnow) {
            r = false;
            goto exit;
        }
        return true;
    }

    // 存在video，播放它
    // 存在bootanim文件，播放它
    // 其他情况，显示静态logo
    if (mVideo && (strSuspending == 0)) {
        r = video();
    } else if (mZip == NULL) {
        r = android();
    } else {
        r = movie();
    }

exit:

    eglMakeCurrent(mDisplay, EGL_NO_SURFACE, EGL_NO_SURFACE, EGL_NO_CONTEXT);
    eglDestroyContext(mDisplay, mContext);
    eglDestroySurface(mDisplay, mSurface);
    mFlingerSurface.clear();
    mFlingerSurfaceControl.clear();
    eglTerminate(mDisplay);
    IPCThreadState::self()->stopProcess();
    return r;
}

线程循环等待中的逻辑就更简单了。首先监测系统的硬件是否初始化完成，确保播放动画的相关配置均已ok，然后分别对上面获取的指定文件进行判断，优先播放video视频，其次是自定义的bootanim动画，如果什么都没有，就显示静态logo。

对于显示的具体流程这里就不做分析了，后续会对如何定制 bootanim.zip 文件进行集中的分析。这里我们只看一下代码显示logo中如何检测开机完成并关闭动画的逻辑。

动画显示关闭流程

    bool BootAnimation::android()
    {
        // 初始化静态logo图片
        initTexture(&mAndroid[0], mAssets, "images/android-logo-mask.png");
        initTexture(&mAndroid[1], mAssets, "images/android-logo-shine.png");

        // 清除屏幕
        glShadeModel(GL_FLAT);
        glDisable(GL_DITHER);
        glDisable(GL_SCISSOR_TEST);

           ...

        const nsecs_t startTime = systemTime();
        do {
            nsecs_t now = systemTime();
            double time = now - startTime;
            float t = 4.0f * float(time / us2ns(16667)) / mAndroid[1].w;
            GLint offset = (1 - (t - floorf(t))) * mAndroid[1].w;
            GLint x = xc - offset;

            ...

            // 12fps: don't animate too fast to preserve CPU
            const nsecs_t sleepTime = 83333 - ns2us(systemTime() - now);
            if (sleepTime > 0)
                usleep(sleepTime);

            // 监测动画是否退出
            checkExit();
        } while (!exitPending());

        glDeleteTextures(1, &mAndroid[0].name);
        glDeleteTextures(1, &mAndroid[1].name);
        return false;
    }

显示静态logo中，死循环监测动画是否退出。

    void BootAnimation::checkExit() {
        // Allow surface flinger to gracefully request shutdown
        char value[PROPERTY_VALUE_MAX];
        property_get(EXIT_PROP_NAME, value, "0");
        int exitnow = atoi(value);
        if (exitnow) {
            requestExit();
            if (mAudioPlayer != NULL) {
                mAudioPlayer->requestExit();
            }
        }
    }

    #define EXIT_PROP_NAME "service.bootanim.exit"

checkExit中监测 value = "service.bootanim.exit" 的属性值，如果等于1，那么就要退出动画。

开机动画的关闭

概述

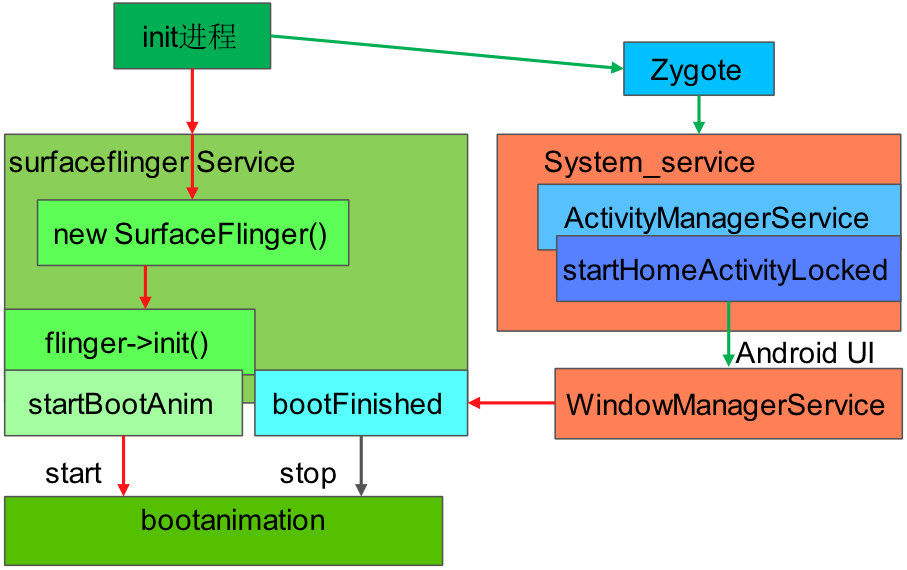

当SystemServer将系统中的关键服务启动完成后，会启动桌面启动器Launcher。Launcher启动后，会向ActivityManagerService发送一个Activity组件空闲通知，AMS收到该通知后，就会调用成员函数enableScreenAfterBoot()停止开机动画，以便让屏幕显示桌面。

AMS -> enableScreenAfterBoot

void enableScreenAfterBoot() {
    EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_ENABLE_SCREEN,
            SystemClock.uptimeMillis());

    // 通知WMS enableScreenAfterBoot
    mWindowManager.enableScreenAfterBoot();

    synchronized (this) {
        updateEventDispatchingLocked();
    }
}

WMS -> enableScreenAfterBoot

由AMS间接调用WMS的enableScreenAfterBoot通知开机完成。

public void enableScreenAfterBoot() {
    synchronized(mWindowMap) {

        ...

        mSystemBooted = true;
        hideBootMessagesLocked();
        // If the screen still doesn't come up after 30 seconds, give
        // up and turn it on.
        mH.sendEmptyMessageDelayed(H.BOOT_TIMEOUT, 30*1000);
    }

    mPolicy.systemBooted();

    // 系统启动完成，准备显示桌面
    performEnableScreen();
}

准备桌面 -> performEnableScreen

public void performEnableScreen() {
    synchronized(mWindowMap) {

        ...

        if (!mBootAnimationStopped) {
            // Do this one time.
            try {

                // 通过binder通信机制，向SurfaceFlinger发送消息，停止开机动画
                IBinder surfaceFlinger = ServiceManager.getService("SurfaceFlinger");
                if (surfaceFlinger != null) {
                    Parcel data = Parcel.obtain();
                    data.writeInterfaceToken("android.ui.ISurfaceComposer");

                    //消息内容为 IBinder.FIRST_CALL_TRANSACTION
                    surfaceFlinger.transact(IBinder.FIRST_CALL_TRANSACTION, // BOOT_FINISHED
                            data, null, 0);
                    data.recycle();
                }
            } catch (RemoteException ex) {
                Slog.e(TAG, "Boot completed: SurfaceFlinger is dead!");
            }
            mBootAnimationStopped = true;
        }

        ...
    }
}

代码可以看出，通过binder通信机制，获取到远程的surfaceflinger服务，向其发送 IBinder.FIRST_CALL_TRANSACTION 消息，远程服务接收到此消息再做处理。

surfaceflinger 接收消息处理

根据其传递的接口名”android.ui.ISurfaceComposer”，找到其文件位置，如下

–> frameworks/native/include/gui/ISurfaceComposer.h
–> frameworks/native/libs/gui/ISurfaceComposer.cpp

其头文件又如下枚举定义值

class BnSurfaceComposer: public BnInterface<ISurfaceComposer> {
    public:
        enum {
            // Note: BOOT_FINISHED must remain this value, it is called from
            // Java by ActivityManagerService.
            BOOT_FINISHED = IBinder::FIRST_CALL_TRANSACTION,
            CREATE_CONNECTION,
            CREATE_GRAPHIC_BUFFER_ALLOC,
            CREATE_DISPLAY_EVENT_CONNECTION,

            ...
            }
}

这里可以看到BOOT_FINISHED消息的定义，之后我们可以在 ISurfaceComposer.cpp 中找到处理这个消息的逻辑

ISurfaceComposer.cpp 处理 BOOT_FINISHED 消息

status_t BnSurfaceComposer::onTransact(
    uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
    switch(code) {

        ...

        case BOOT_FINISHED: {
            CHECK_INTERFACE(ISurfaceComposer, data, reply);
            bootFinished();
            return NO_ERROR;
        }

       ...

    }
}

在 ISurfaceComposer.cpp 中的onTransact方法中，集中处理发来的binder消息，这里可以看出在对WMS发来的 BOOT_FINISHED(IBinder::FIRST_CALL_TRANSACTION) 消息，直接回掉bootFinished()方法。

virtual void bootFinished(){
    Parcel data, reply;
    data.writeInterfaceToken(ISurfaceComposer::getInterfaceDescriptor());
    remote()->transact(BnSurfaceComposer::BOOT_FINISHED, data, &reply);
}

SurfaceFlinger 回掉 bootFinished

SurfaceFlinger 继承 BnSurfaceComposer，BnSurfaceComposer 又继承 BnInterface，BnInterface 时定义好的模版，形参为 ISurfaceComposer。SurfaceFlinger的bootFinished方法如下：

void SurfaceFlinger::bootFinished(){
    const nsecs_t now = systemTime();
    const nsecs_t duration = now - mBootTime;
    mBootFinished = true;

    struct timespec t = {0, 0};
    clock_gettime(CLOCK_MONOTONIC, &t);

    const String16 name("window");
    sp<IBinder> window(defaultServiceManager()->getService(name));
    if (window != 0) {
        window->linkToDeath(static_cast<IBinder::DeathRecipient*>(this));
    }

    // 置位关闭动画属性值
    property_set("service.bootanim.exit", "1");
}

走到这里，serfaceflinger就完成了关闭动画的属性值更改操作，后面就是bootanim程序死循环中不断检测指定属性值实现动画的关闭。

bootanim 循环监测实现关闭动画

void BootAnimation::checkExit() {
    // Allow surface flinger to gracefully request shutdown
    char value[PROPERTY_VALUE_MAX];
    property_get(EXIT_PROP_NAME, value, "0");
    int exitnow = atoi(value);
    if (exitnow) {
        requestExit();
        if (mAudioPlayer != NULL) {
            mAudioPlayer->requestExit();
        }
    }
}
